50L/Batch – 5000L/Batch Customized Toothpaste Making Mixer Machine – Vacuum Emulsifying Mixer|Automatic Filling Machine|Homogenizing Mixer|Reverse Osmosis Water Treatment

Description

Product Introduction

This Machine produced by our company is widely used for manufacturing paste, ointment – like toothpaste, cosmetics, food and chemical industry. We can do toothpaste mini size 50L, Max 5000L; Below is based 2500L instruction:

We have advanced production technology, and pursuit innovative in products. At the same time, the good service has enhanced the good reputation. We believe that as long as you understand our product, you must be willing to become partners with us. Looking forward to your inquiry.

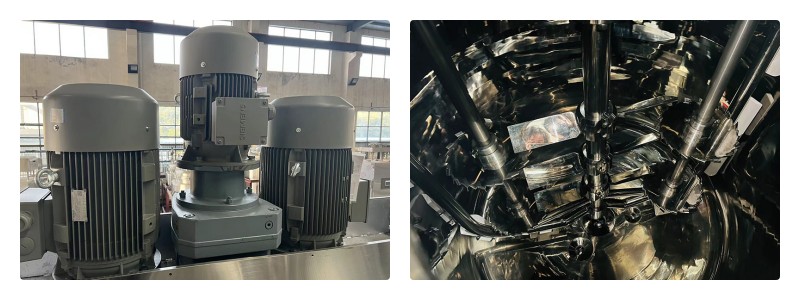

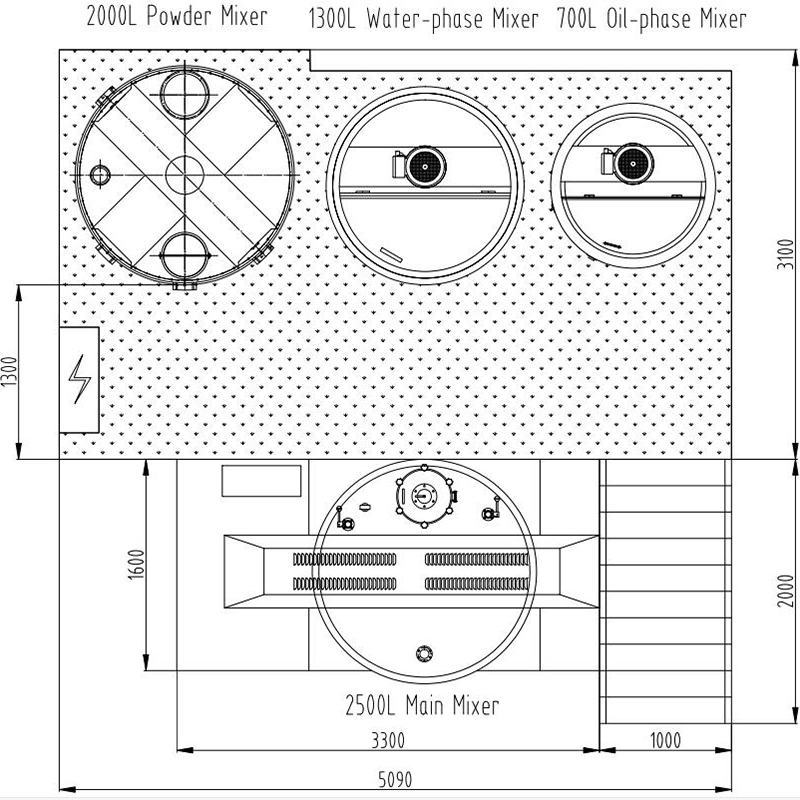

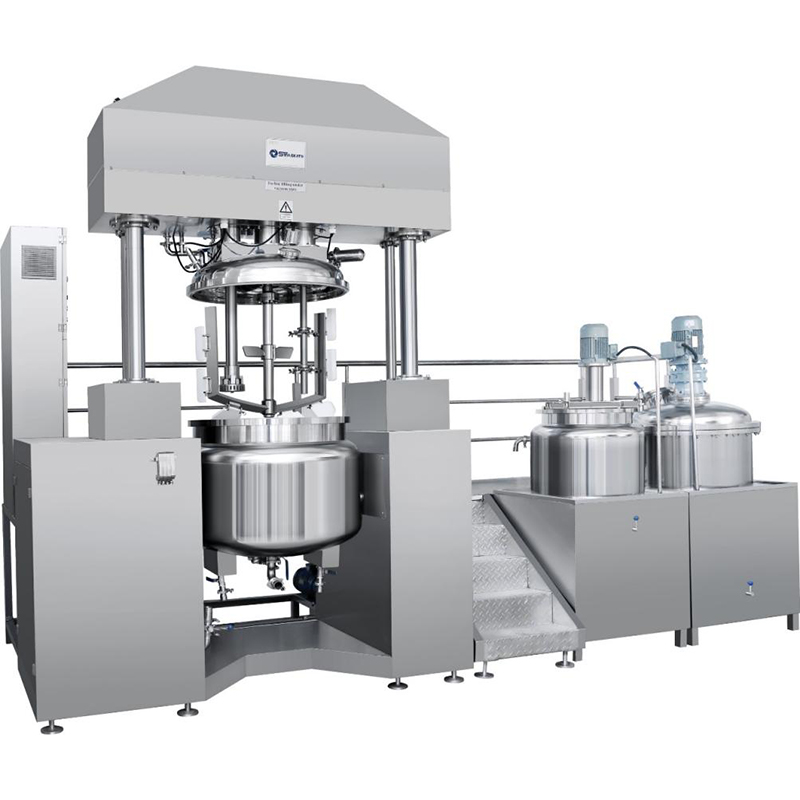

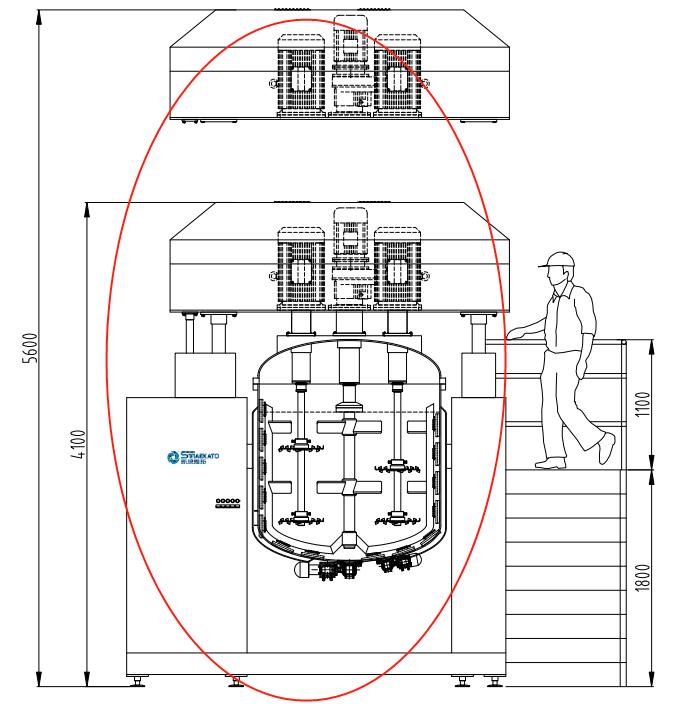

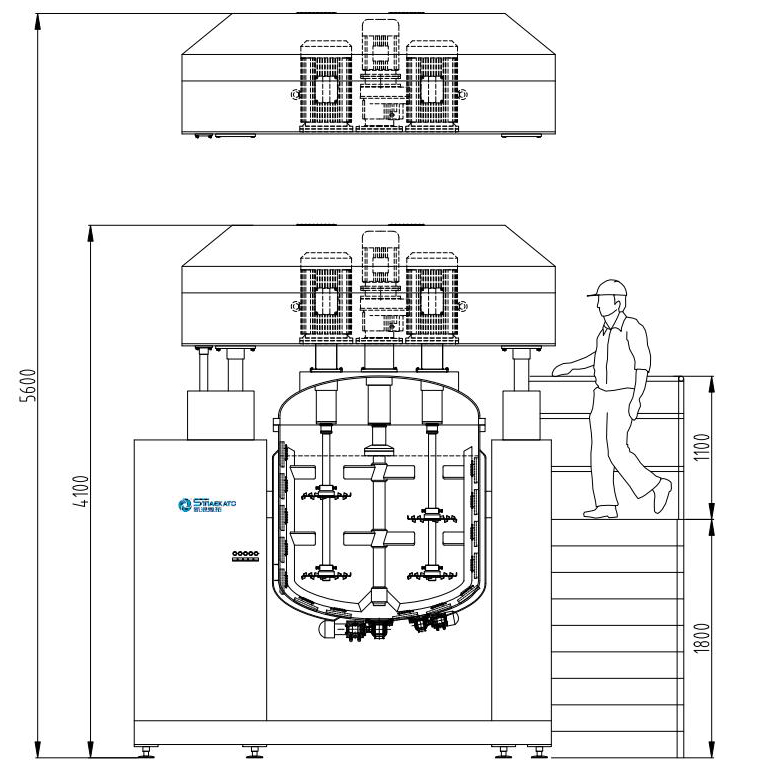

2500L Toothpaste Making Machine – Main Mixer
A. Three layers stainless steel, all contact product adopts stainless steel 316L,other/surface adopts stainless steel 304;
B. Steam heating
C. Single direction mixing with scraper + dispersing mixing on 2 sides
D. Control by touch screen + PLC (Electrical button optional)
E. Top mixing – Single direction mixing with scraper + 2 sides dispersing mixing
F. Homogenizer/Emulsifier optional;

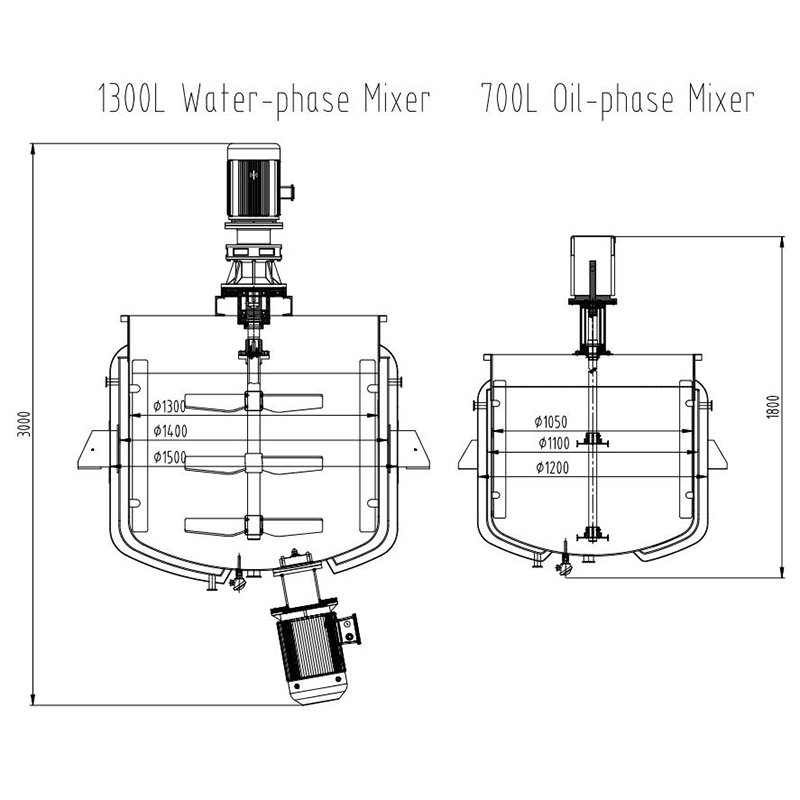

1300L Water-phase Premixer:
A. Three layers stainless steel, all contact product adopts stainless steel 316L,other/surface adopts stainless steel 304;
B. Steam heating
C. Top – Paddle mixing with guide plate & bottom homogenizer
D. Control by touch screen & PLC

700L Oil-phase Premixer:
A. Three layers stainless steel, all contact product adopts stainless steel 316L,other/surface adopts stainless steel 304;
B. Steam heating
C. Top dispersing mixing
D. Control by touch screen & PLC

2500L Powder Mixer
– Single layer (without heating/cooling)
– Top mixing
– Sealed cover
– Material inlet – φ400
– Maintenance hole – φ450
– View hole – φ140 – 2 pieces
– Easy to be operated
– Hydraulic lifting system, easy to be cleaned and discharge
– SUS 316L contact material, GMP standard
– Vacuum system for sucking the powder
– Suitable for both cream liquid toothpaste production.
