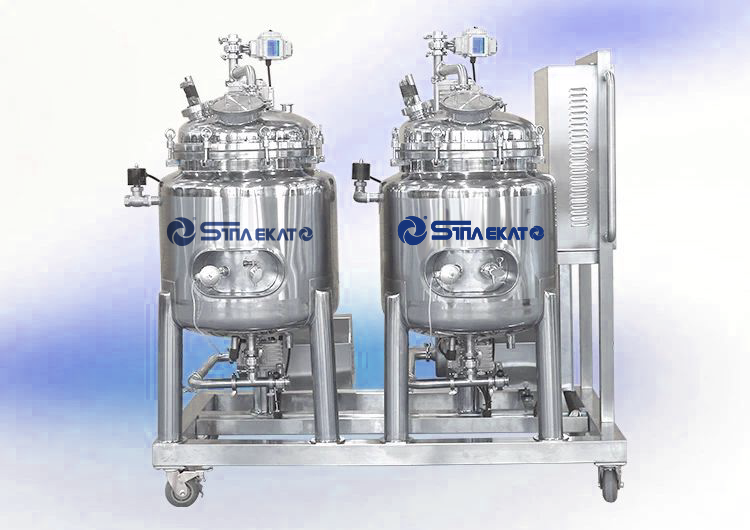

CIP Cleaning Device

CIP cleaning is a set of independent process module, usually working mode is passive mode;

According to the customer’s cleaning process, we can provide fixed or mobile models, single tank, double tank or multi-tank structure, and can choose to configure heating, adding acid, alkaline cleaning agent cleaning and other functions;

CIP cleaning process adopts automatic cleaning, through the man-machine interface, graphical display, customers can flexibly adjust the formula to meet the needs of different production processes, can automatically adjust the cleaning time, pressure, flow, temperature and other related process parameters, can carry out automatic preparation of different detergent concentration and automatic detection of CIP cleaning effect. At the same time, all operations can be recorded to facilitate system authentication.

Description

Application

CIP cleaning system is not only used in cosmetics manufacturing enterprises, but also widely used in many industries such as daily chemical home care. Its efficient cleaning capability is essential to ensure product quality and hygiene standards.

working principle

CIP cleaning systems use specific procedures and pumping systems to deliver water and cleaning fluids to the inside of the equipment for automatic cleaning. The cleaning process is usually operated in closed production equipment, tank containers and pipes, which greatly reduces the chance of secondary contamination.

Performances And Features

1, stable and efficient: the man-machine interface image display, can automatically switch the process parameters, such as cleaning time, PH, temperature, etc., and the operation mode can be selected manual or automatic.

2, compact structure: low economic operating cost, small footprint, easy installation and maintenance.

3, high degree of automation: can automatically detect, add liquid, discharge, display and adjust the cleaning liquid, simple operation, good cleaning effect.

4, strong adaptability: It can be divided into one to four ways according to production needs, which can clean the same or more areas at the same time, and can also be cleaned while producing in the production process.

Technical Parameter

volume(L)	Motor power(KW)	Height of cylinder(MM)	Diameter of cylinder(MM)	Mixing speed()R/MIN	Working pressure	Operating temperature	Basic fittings
300	0.75	600	800				Thermometer, safety valve, pressure gauge
400	0.75	800	800	36(0-120 Optional)	≤0.09Mpa	＜160℃	Thermometer, safety valve, pressure gauge
500	1.5	900	900	36(0-120 Optional)	≤0.09Mpa	＜160℃	Thermometer, safety valve, pressure gauge
800	1.5	1000	1000	36(0-120 Optional)	≤0.09Mpa	＜160℃	Thermometer, safety valve, pressure gauge
1000	1.5	1220	1000	36(0-120 Optional)	≤0.09Mpa	＜160℃	Thermometer, safety valve, pressure gauge
1500	2.2	1220	1200	36(0-120 Optional)	≤0.09Mpa	＜160℃	Thermometer, safety valve, pressure gauge
2000	3	1500	1300	36(0-120 Optional)	≤0.09Mpa	＜160℃	Thermometer, safety valve, pressure gauge
3000	4	1500	1600	36(0-120 Optional)	≤0.09Mpa	＜160℃	Thermometer, safety valve, pressure gauge

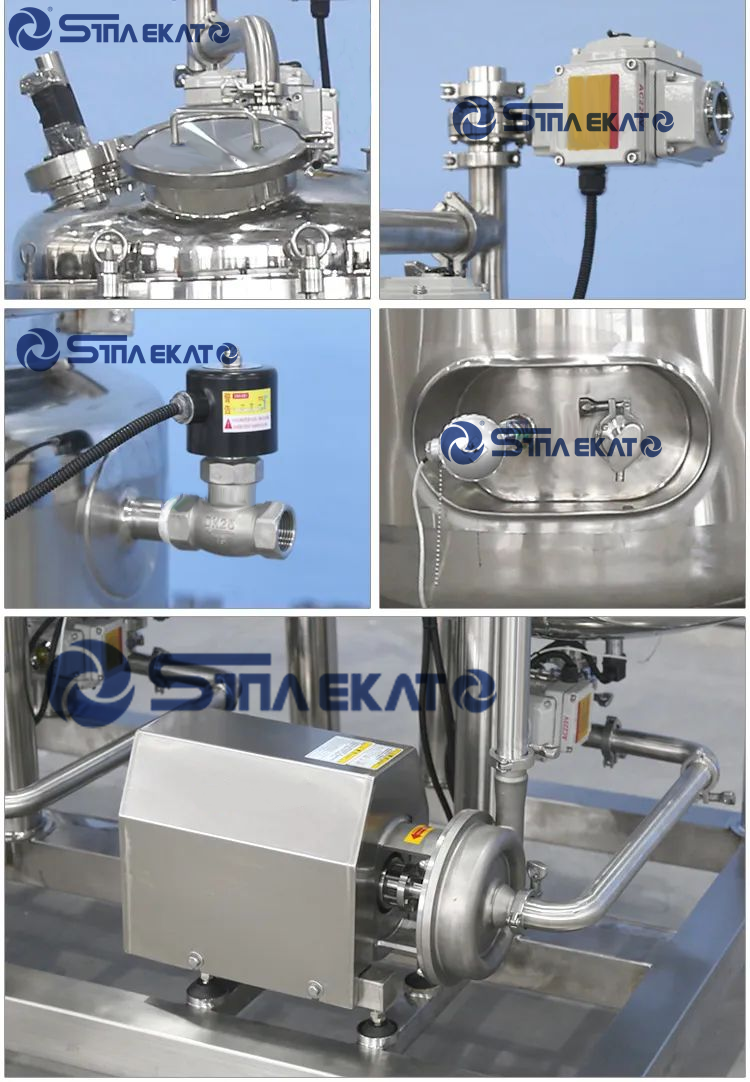

Product Details

CIP systems typically include CIP dispensing tanks (such as CIP alkali tanks, CIP acid tanks, hot water tanks, and recovery tanks), hot water tanks, centrifugal pumps, pipes, valves and fittings, and CIP control cabinets.
