SME-DE Vacuum Homogenizer Emulsifying Mixer

The fixed pot body vacuum homogenizing emulsifier is a type of emulsifying machine that is used in various industries such as cosmetics, pharmaceuticals, food and chemical processing. It consists of a fixed vessel or pot that is designed to hold the ingredients to be mixed, and a vacuum pump system that creates a vacuum within the vessel.

Description

Application

Daily cosmetic
hair conditioner	facial mask	moisturizing lotion	suncream
skin care	shea butter	body lotion	sunscreen cream
cream	hair cream	cosmetic paste	BB Cream
lotion	face wash liquid	mascara	foundation
hair color	face cream	eye serum	hair gel
hair dye	lip balm	serum	lip gloss
emulsion	lipstick	highly viscous product	shampoo
cosmetic toner	hand cream	shaving cream	moisturizing cream
Food & Pharmaceutical
cheese	milk butter	ointment	ketchup
mustard	peanut butter	mayonnaise	wasabi
toothpaste	margarine	Salad dressing	sauce

Performance & Features

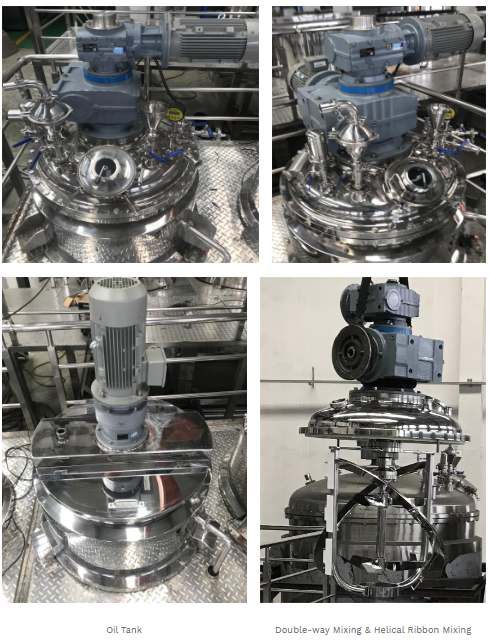

1. The mixing systems double-way mixing & helical ribbon mixing. This agitator consists of two helical-shaped ribbons that are paired and rotate in opposite directions. It has the following characteristics: Efficient Mixing: The double helix design of the ribbon blades ensures efficient mixing of materials while avoiding dead spots, High Viscosity Handling: This type of agitator is particularly suitable for processing high viscous materials, such as adhesives, pastes, and gels educed Shear: The gentle mixing action of the ribbon blades reduces the shear that can occur in other types of mixers.

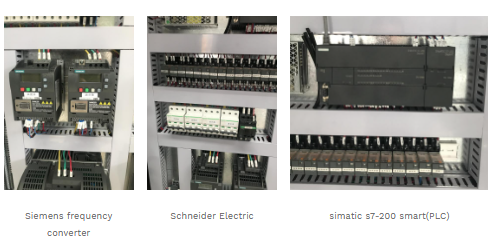

2. The triple mixing adopts the imported frequency converter for speed adjustment. which can meet different technological demands.

3. The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 3000 rpm and the highest shearing fineness can reach 0.2-5 μm .The vacuum defoaming can make the materials meet the requirement of being aseptic.

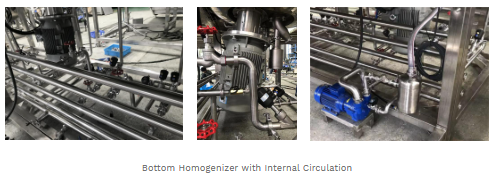

4. The machine uses an internal circulation system to achieve a more uniform and fine emulsifying effect. The material is circulated within the machine, undergoing multiple cycles of emulsification, until the desired consistency is achieved.

5. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust. The pot body is welded by imported three-layer stainless steel plate.

6. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements. According to technological requirements, the tank body can heat or cool the materials.

7. The heating modes mainly include steam heating or electric heating. To ensure the control of the whole machine is more stable, the electric appliances adopt imported configurations, so as to fully meet the international standards.

8. Easy to Clean and Maintain: The fixed pot body design makes it easy to clean and maintain the machine. This reduces the risk of contamination during the mixing process. The machine equipped with CIP, which can convinient user’s own CIP system to clean the machine.

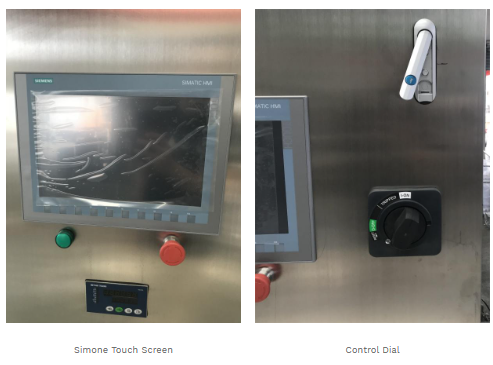

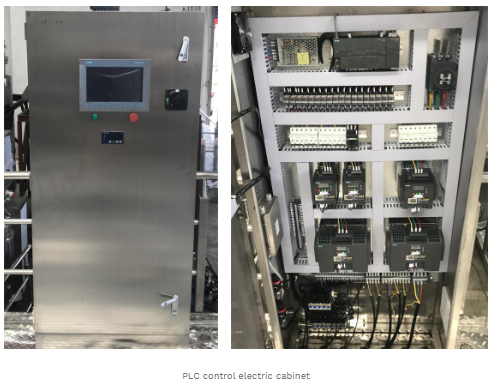

. The Siemens PLC control cabinet & Siemens touch screen To ensure the control of the whole machine is more stable ,the electric appliances adopt imported configurations, so as to fully Easy-to-use control panel: The machine features a user-friendly control panel, which allows operators to easily adjust the speed, temperature, and other parameters as needed

Technical Parameter

Model	Capacity(L)	Mixing Power(KW)	Mixing Speed(r/min)	Homogenizer Power(KW)	Homogenizing Speed	Heating Method	Limit Vacuum(Mpa)
SME-DE 50L	50L	1.5KW	0-63RPM	3KW	0-3000RPM	Electric heating or steam heating	-0.09
SME-DE 100L	100L	2.2KW	0-63RPM	4KW	0-3000RPM	Electric heating or steam heating	-0.09
SME-DE 200L	200L	3KW	0-63RPM	5.5KW	0-3000RPM	Electric heating or steam heating	-0.09
SME-DE 300L	300L	3-5.5KW	0-63RPM	11KW	0-3000RPM	Electric heating or steam heating	-0.085
SME-DE 500L	500L	4-7.5KW	0-63RPM	15KW	0-3000RPM	Electric heating or steam heating	-0.08
SME-DE 1000L	1000L	7.5KW	0-63RPM	15KW	0-3000RPM	Electric heating or steam heating	-0.08
SME-DE 2000L	2000L	11KW	0-63RPM	18.5KW	0-3000RPM	Electric heating or steam heating	-0.08
Note : In case of inconformity of the data in the due to technical improvement or customization, the real object shall prtvail

Specification
SME-DE Vacuum homogenizing emulsifying machine
Capacity	10-2000L
Uasage	Cosmetic cream,paste,ointment, lotion,gel,conditioner,milk,sauce
High shear rate	less than 2um
Contact part	SS316L(three jackets.contact material parts adoptSS316L, The rest are ss304
Homogenizer speed	0-3000rpm
Scraper speed	0-63rpm
Heating	steam/electric
Operating	PLC
Type	1. Lift type (Hydraulic lifting system)
	2 .Fixed type(the cover can’t lift)
