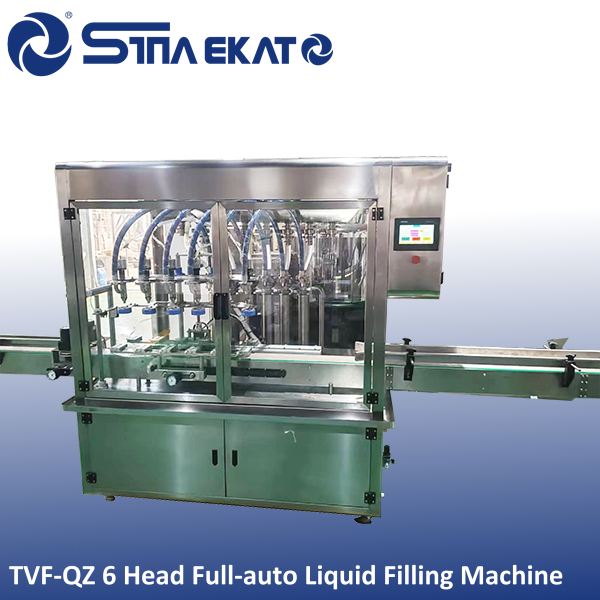

Full-auto 6 head Liquid Filling Machine

The four-head tracking filling machine adopts the principle of servo-driven piston quantitative filling, which is composed of chain conveyor, clamping automatic alignment mechanism, filling mechanism, automatic servo following system, automatic lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operation interface, etc., which can be applied to automatic filling of different specifications bottles. Convenient debugging, filling nozzle with the product tracking filling, the production process without pause, greatly increasing the production efficiency, into the bottle, testing, bottle clamping, filling, bottle are automatically controlled by PLC.

Description

Machine Video

Application

Widely used in all kinds of washing liquid, hand soap, shampoo, shampoo, honey and other thick material filling, each filling head can be individually controlled filling system, simple debugging, easy cleaning.

Performances And Features

-6 head piston tracking filling
– Part of the material contact part of the material 316L
-The filling head is drip-proof
-Connect hose (quick load corrosion-resistant hose)
– Omron reflector photoelectric counting, no bottle, no bottle filling
– Servo filling head lift, touch screen to set the bottle height
– Filling machine frame frame 4 columns material 304 square pipe
– Filler panel material 1.5-304 stainless steel plate
– Filling machine panel structure layer material is carbon steel 10.0MM
– Filling machine side door plate quality is 1.2MM-304 wire drawing plate
– Filling machine hopper, the material is -316/1.5MM material
– Filling machining parts for aluminum anodizing, linear optical axis, 304, PE, PP and other materials

Technical Parameter

Applicable:	liquid & cream & lotion
Filling volume	300-1500ML
Suitable for bottle height	50-300MM
Suitable bottle diameter	50-150MM
Filling speed 6 head tracking filling emulsion	600ML40-60 bottles/min
Filling type	piston/penultimate type
Voltage:	220V
Pneumatic	4-6KG
Weight	1000kg
