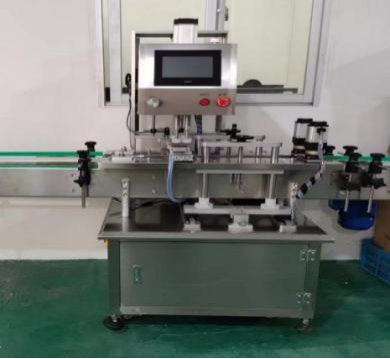

Full auto Capping Machine

TVF full-frequency high-speed capping machine adopts electrical-mechanical integration design, easy operation, simple maintenance, reliable operation and great applicability. Its working principle is to

clamp and transport the bottle body through two synchronous entrainments, four sets of high elastic wear resistance. The rubber rim turns the cap to achieve the purpose of capping. The machine has the characteristics of reasonable design, compact structure, fast screwing speed, high reliability, easy

operation and convenient maintenance. It is an ideal equipment for automated capping process in the pharmaceutical, food, chemical and other industries.

Description

Application

Performances And Features

Touchpanel, comfortable to touch, simple to setup, beautiful and practical.
Suitable forbottles ofround, square, oblate or flat shape.
Canbeused separately, or can be combined with several pieces, sealing, labeling and other equipment into an automated mechanical packaging production line.

Technical parameter

1	Rated voltage	AC220V 50/60HZ
2	Power	2KW
3	Cap diameter	According to bottle samples
4	Bottle diameter	According to bottle samples
5	Capping speed	60bottles/min
6	Dimension (LWH)	2000x760x1430mm
7	Bottle height	According to bottle samples
8	Machine Weight	About 150kgs
9	Rated torque	2.39

Configuration table

No	Item	Quantity	Manufacturer
1	PLC	1 set	Siemens
2	Pneumatic part	1 set	Airtac
3	Relay	1 set	Schneider
4	Power control	1 set	Schneider
5	Servo capping motor	1 set	Xinje
6	Main motor	1 set	China
