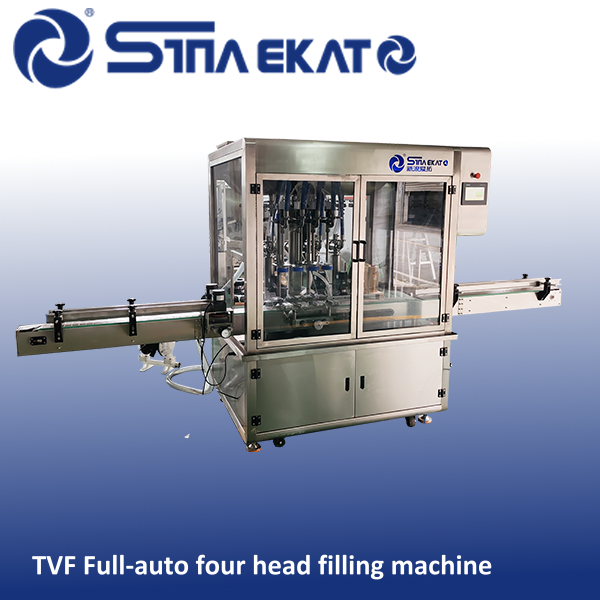

Full-auto four head Liquid Filling Machine

The four-head tracking filling machine adopts the principle of servo-driven piston quantitative filling, which is composed of chain conveyor, clamping automatic alignment mechanism, filling mechanism, automatic servo following system, automatic lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operation interface, etc., which can be applied to automatic filling of different specifications bottles. Convenient debugging, filling nozzle with the product tracking filling, the production process without pause, greatly increasing the production efficiency, into the bottle, testing, bottle clamping, filling, bottle are automatically controlled by PLC.

Description

Machine Video

Application

Widely used in all kinds of washing liquid, hand soap, shampoo, shampoo, honey and other thick material filling, each filling head can be individually controlled filling system, simple debugging, easy cleaning.

Performances And Features

-4 head piston tracking filling
– Part of the material contact part of the material 316L
-The filling head is drip-proof
-Connect hose (quick load corrosion-resistant hose)
– Omron reflector photoelectric counting, no bottle, no bottle filling
– Servo filling head lift, touch screen to set the bottle height
– Filling machine frame frame 4 columns material 304 square pipe
– Filler panel material 1.5-304 stainless steel plate
– Filling machine panel structure layer material is carbon steel 10.0MM
– Filling machine side door plate quality is 1.2MM-304 wire drawing plate
– Filling machine hopper, the material is -316/1.5MM material
–  Filling machining parts for aluminum anodizing, linear optical axis, 304, PE, PP and other materials

Technical Parameter

 Applicable:  liquid & cream & lotion
Filling volume 100-1000ML
Suitable for bottle height 50-250MM
Suitable bottle diameter 50-100MM
Filling speed 6 head tracking filling emulsion 600ML50-60 bottles/min
Filling type piston/penultimate type
Voltage: 220V
Pneumatic 4-6KG
Weight 700kg

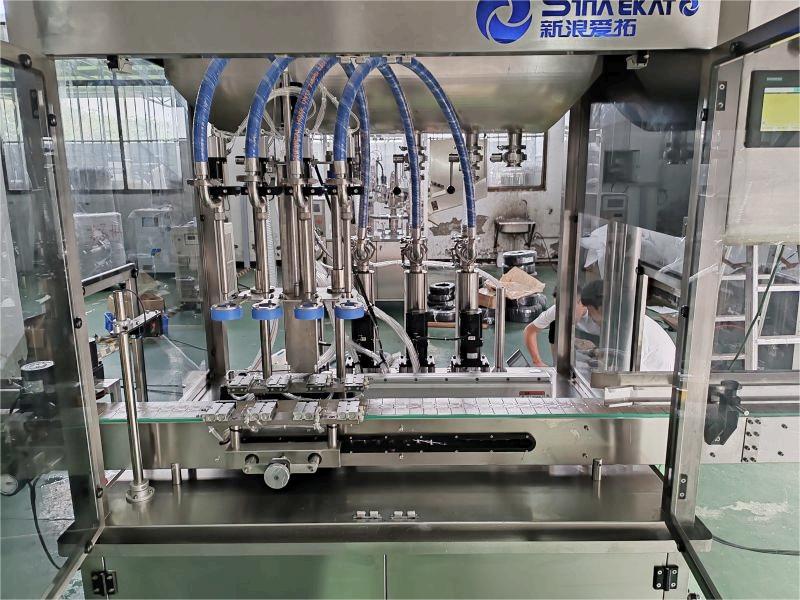

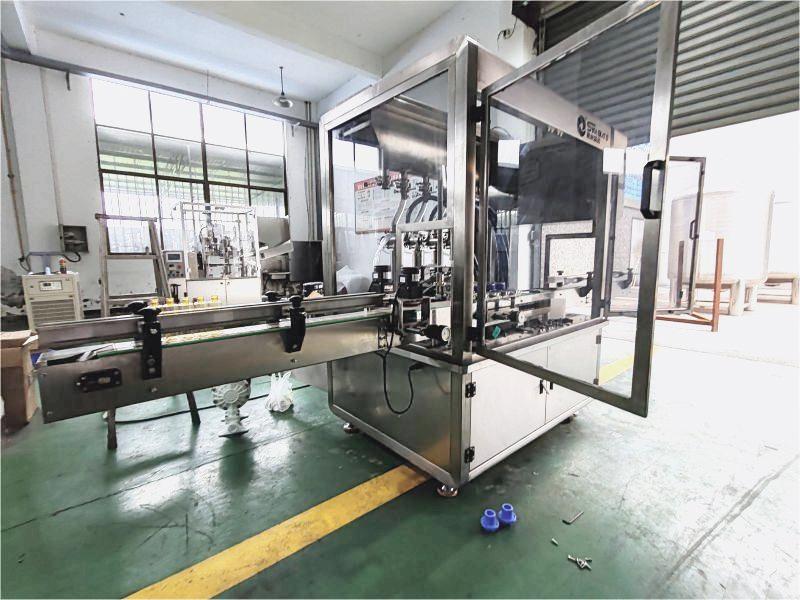

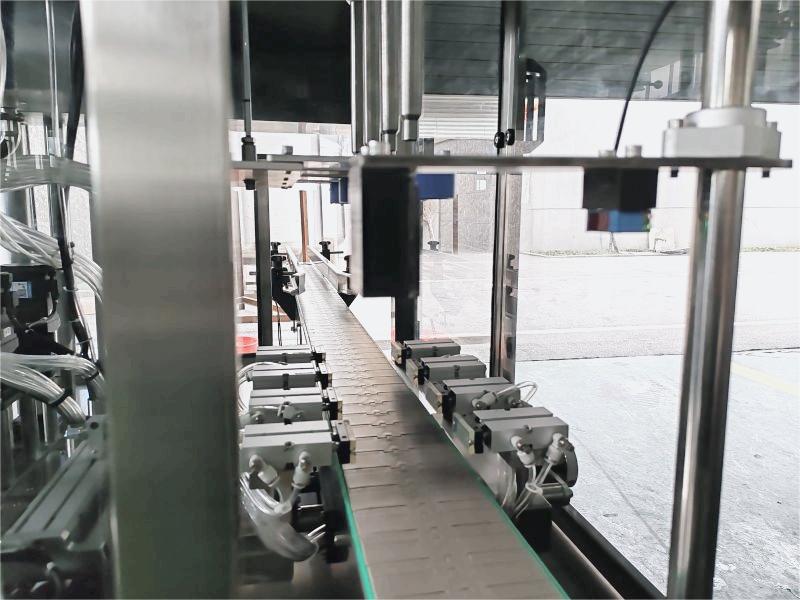

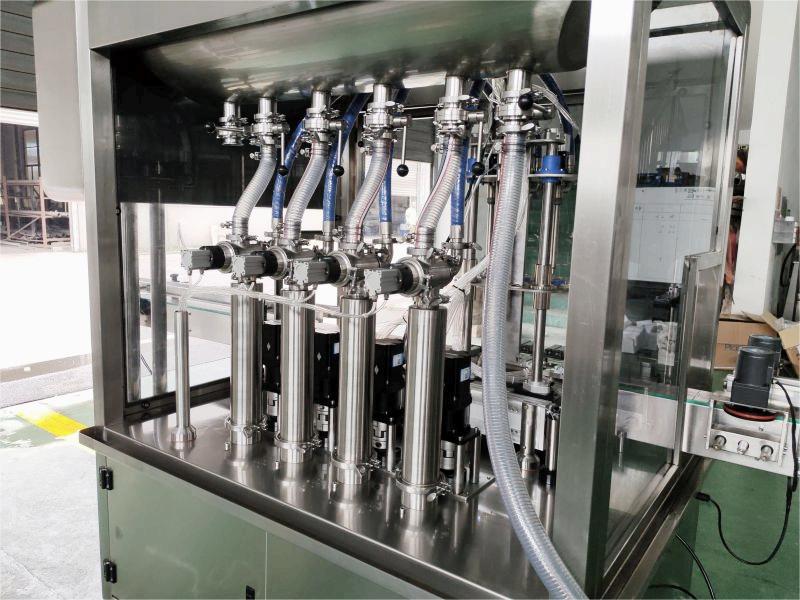

Product Details

Relevant Machines

We can offer machines for you as following

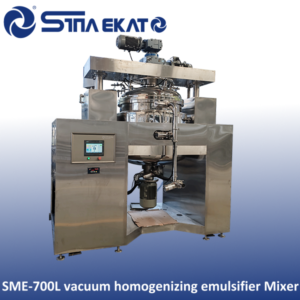

Reverse osmosis water purifier, vacuum homogenizing emulsifier. aseptic storage tank, drying sterilizer, ointment filling machine. conveying workbench, code printer, labeling machine, aluminum foil sealing machine, shrink film machine

Click the picture to jump to the link related to the product

Company Profile

With the solid backing of jiang su Province gao you city Xinlang Light
Industry Machinery & Equipment Factory, under the support of German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, Guangzhou SINAEKAT chemical Machinery Co, Ltd. is a professional manufacturer of various types of cosmetic machinery and equjpment and has become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as. cosmetics, medicine, foodchemical industry, electronics, etc., serving many nationally and internationally famous enterprises suchas Guangzhou Houdy Group, Bawang Group, Shenzhen Lanting Technology Co., ltd, Liangmianzhen GroupZhoneshan Perfect, Zhoneshan Jial, Guanedone Yanor, Guanedone Lafane. Beine Dabao, Japan Shiseidokorea charmzone, France shiting, Usa JB, etc.



Workshop Production

Our Advantage

With many years of experience in domestic and international installation, SINAEKATO has successively undertaken the integral installation of hundreds of large-sized projects.

Our company provides internationally top-ranking professional project installation experience and management experience.

Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.

We are sincerely providing customers from home and abroad with machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other service.



Our Project





Packing and Shipping

Exhibitions & Customers visit factory



Cooperative Customers





Material Certificate
