High Speed Fully Automatic Facial Mask Filling And Sealing Machine

SM-400 Mascara filling plug capping coupling has the functions of manual tube, automatic filling, manual brush automatic brush, automatic servo capping; The whole machine adopts PLC control, with no bottle body no filling, no brush cap function, simple operation, convenient adjustment. The material box is pressurized, and the whole machine is made of 304 and 316L stainless steel in contact with the material.

Description

Application

Performances And Features

1. Automatic bag feeding, filling, sealing, code printing and outputting

2. The parts that contact materials are all made of stainless steel 316, meeting GMP requirements.

3. Different filling machine are selected according to the nature of materials. The standard configuration is electronic gear pump, and the optional configuration is pneumatic piston pump, which is suitable for filling of facial mask liquids of relatively high viscosity

4. No filling is carried out if there is no bad. No sealing is carried out if there is no bag. The seal is not sticky to the bag.

5. Operation is controlled by PLC+LCD. The equipment parameters, output and error information are clearly seen on the touch screen.

6. Digital display of temperature control.

7. The electric and pneumatic components are all products of international famous brands.

Technical Parameter

Model
Action flow	Automatic bag feeding,automatic filling,automatic sealing,finished products outputting
Passage number	6(Can control independently)
Production efficiency	7000-7500PCS/H
Facial mask bag specification	Wide95-160mm Length120-220mm Note:Eye masks and other special bag packaging specification can be made to order.
Standard filling pump	Electronic gear pump,accuracy±0.2g
Power supply	Power supply:380V3Ph/50Hz Power7.5KW
Air pressure	0.6Mpa 300L/min
Equipment size	L2250W10501720

Product Details

Automatic facial mask filling and sealing machine Function is Automatic bag feeding, automatic filling, automatic sealing, coding, finished product output. automatic counting, no bag without filling no bag no seal

Weighting machine function is automatically check the weight of finished facial mask sand reject the un qualifed facial mask.

Facial mask bag counting and stacking machine function is machine count the inline outfeed facial mask bags, and stack them as set stacking number(5-20pcs)and then push out the stacked bags.

Relevant Machines

We can offer machines for you as following

Reverse osmosis water purifier, vacuum homogenizing emulsifier. aseptic storage tank, drying sterilizer, ointment filling machine. conveying workbench, code printer, labeling machine, aluminum foil sealing machine, shrink film machine

Click the picture to jump to the link related to the product

: RO Water Machine

: Bottle Washing Machine

: Bottle Drying Sterilizer

: Stainless steel storage tank

: Automatic aluminum foil sealing machine

: Labelling Machine

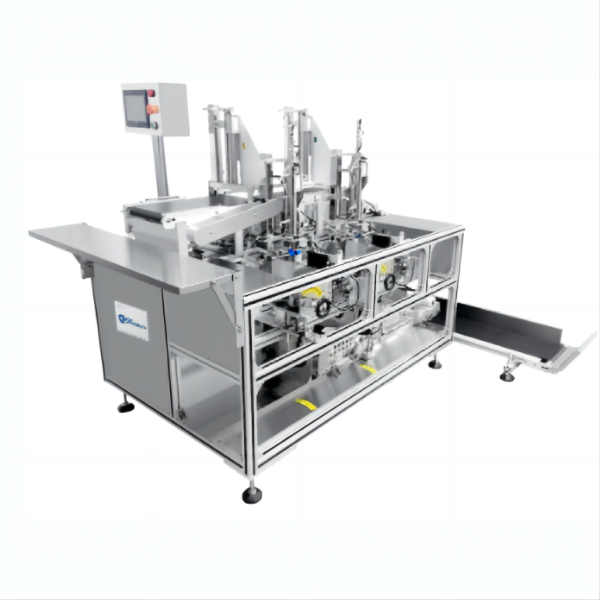

: High Speed cotton Folding Machine

: shrinking seal wrapping machine

Company Profile

With the solid backing of jiang su Province gao you city Xinlang Light
Industry Machinery & Equipment Factory, under the support of German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, Guangzhou SINAEKAT chemical Machinery Co, Ltd. is a professional manufacturer of various types of cosmetic machinery and equjpment and has become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as. cosmetics, medicine, foodchemical industry, electronics, etc., serving many nationally and internationally famous enterprises suchas Guangzhou Houdy Group, Bawang Group, Shenzhen Lanting Technology Co., ltd, Liangmianzhen GroupZhoneshan Perfect, Zhoneshan Jial, Guanedone Yanor, Guanedone Lafane. Beine Dabao, Japan Shiseidokorea charmzone, France shiting, Usa JB, etc.

Filling Workshop Production

Our Advantage

With many years of experience in domestic and international installation, SINAEKATO has successively undertaken the integral installation of hundreds of large-sized projects.

Our company provides internationally top-ranking professional project installation experience and management experience.

Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.

We are sincerely providing customers from home and abroad with machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other service.
