Description
Product Feature
♦ The machine adopts imported mechanical parts, and the piston and cylinder are made of stainless steel and polytetrafluoroethylene.
♦ Excellent imported aluminum components and excellent mechanical design.
♦ New vertical horizontal design, light and convenient, automatic material extraction, eliminating the trouble of frequent feeding of vertical hopper.
♦ Manual and automatic switching function. When the machine is in the “automatic” state, the machine will automatically carry out continuous filling according to the set speed. When the machine is in the “manual” state, the operator steps on the step plate to achieve filling. If he keeps stepping on it, it will also become the automatic continuous filling state.
♦ The material cylinder and tee are connected by handcuffs, which is convenient for disassembly and assembly without any special tools, so the cleaning is very convenient.
♦ When the anti-drip filling system is filling, the cylinder moves up and down to drive the bulkhead. When the cylinder is downward, the plug is downward, that is, the valve is opened, and the material is filled. When the cylinder is upward, the plug is upward. At this time, the valve is closed, the filling is stopped, and the occurrence of dripping and wire drawing is eliminated.
Technical Parameter
Model | Filling Volume | Filling Speed | Air Supply |
TVF-5 | 5-60ml | 0-45bot/min | 0.2-0.6Mpa |
TVF-10 | 10-120ml | 0-35bot/min | 0.2-0.6Mpa |
TMF-25 | 25-250ml | 0-30bot/min | 0.2-0.6Mpa |
TVF-50 | 50-500l | 0-30bot/min | 0.2-0.6Mpa |
TVF-100 | 100-1000ml | 0-25bot/min | 0.2-0.6Mpa |
TVF-250 | 250-250l | 0-18bot/min | 02-0.6Mpa |
TVF-500 | 500-5000ml | 0-12bot/min | 0.2-0.6Mpa |

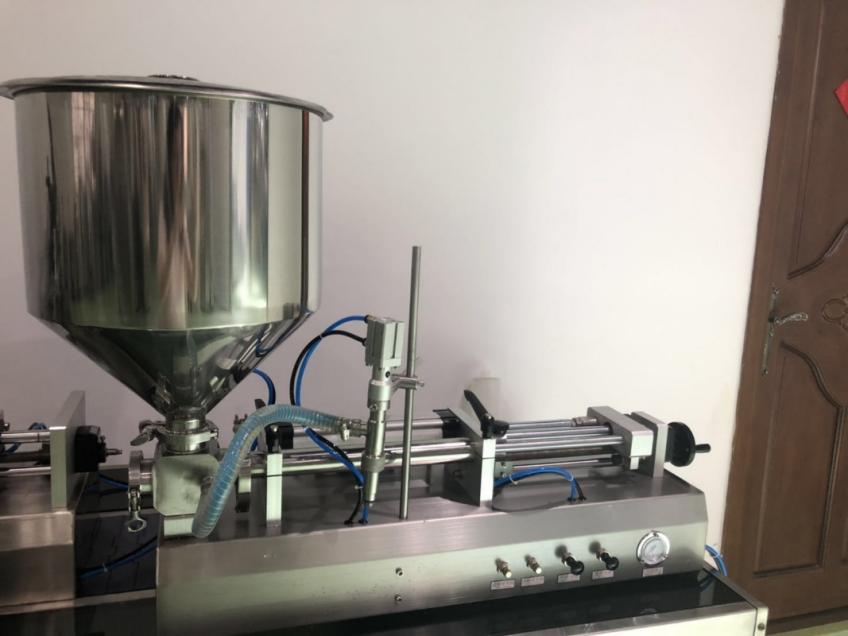

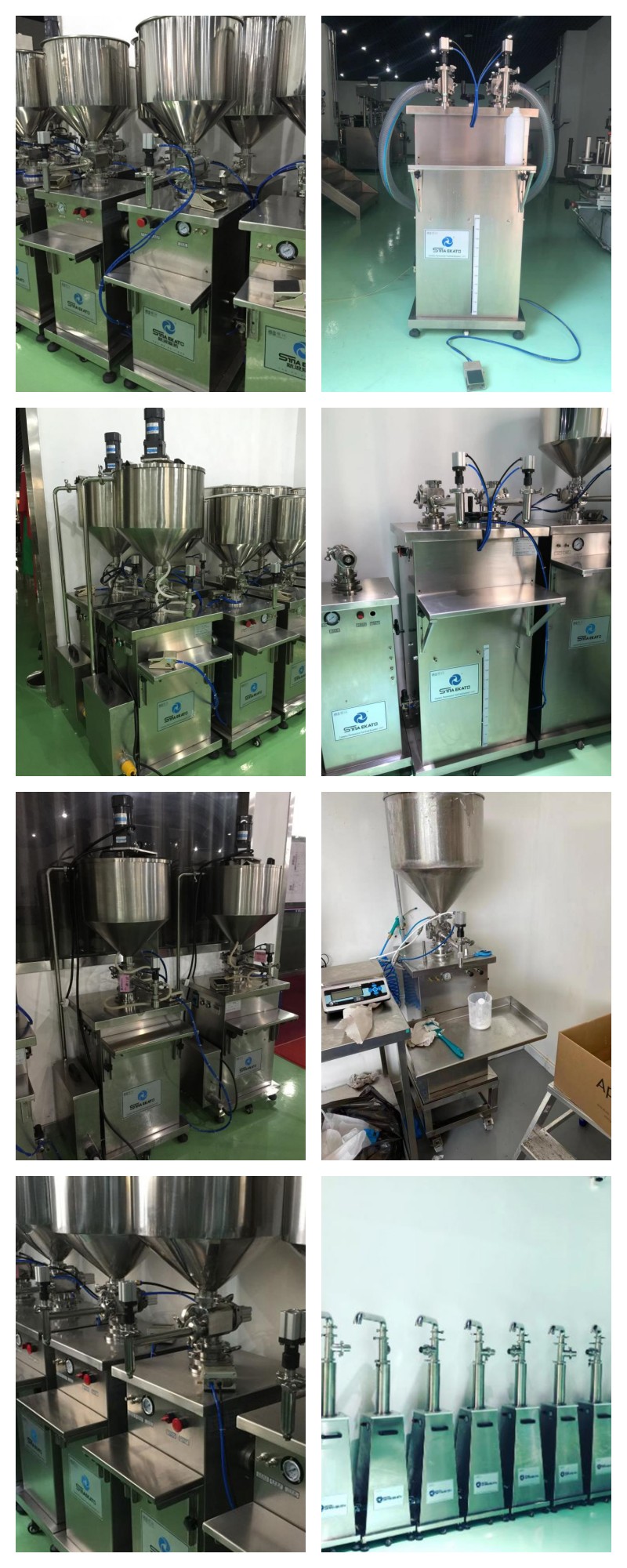

Actual Photo
![](http://www.sinaekato.group/wp-content/uploads/2023/04/Actual-Photo.jpg)
![](http://www.sinaekato.group/wp-content/uploads/2023/04/p513.jpg)

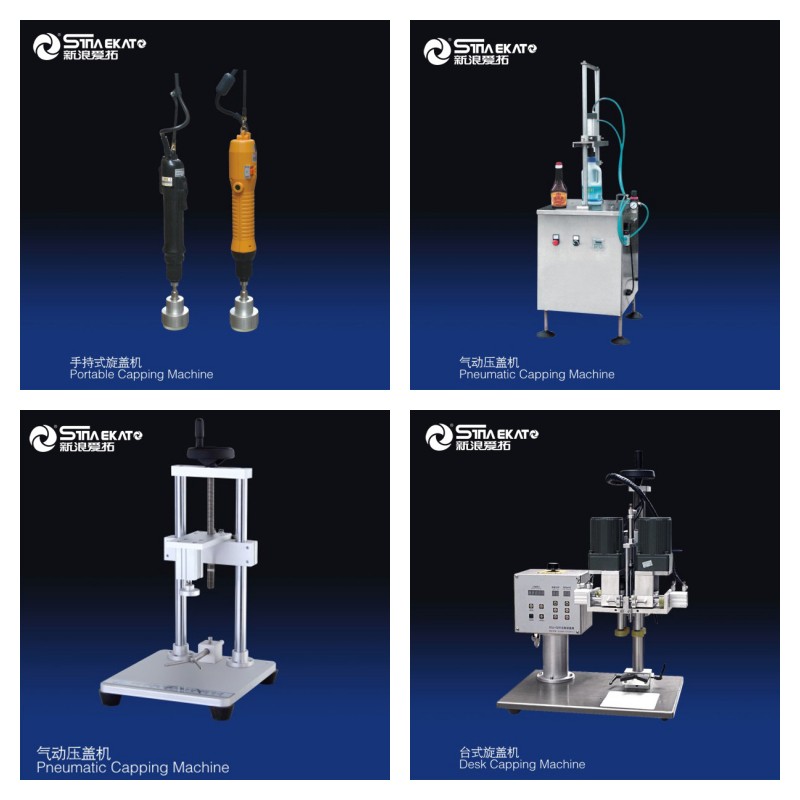

Related Products
