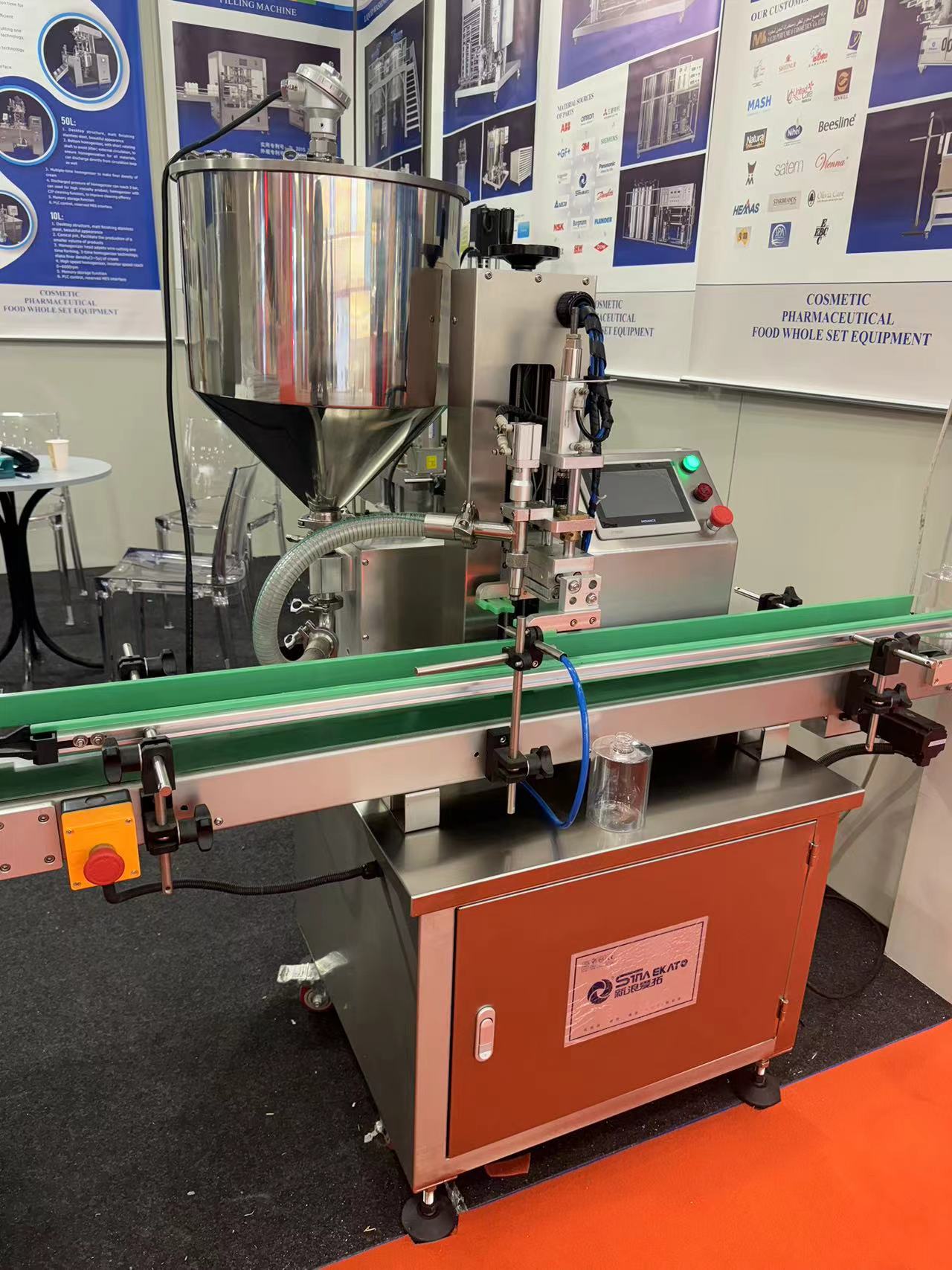

Single-head Auto servo filling machine

Single-head automatic filling machine is a kind of filling equipment for liquid and semi-liquid products. It uses advanced automation technology to achieve high precision and high efficiency filling operations. The equipment is composed of a filling head, a control system, a conveying system and a filling container support. Its working principle is to accurately control the filling head through the control system, so that the liquid product is automatically filled to the container according to the preset capacity. Single-head automatic filling machine usually has the characteristics of flexible filling parameter adjustment, easy to clean and maintain, safe and reliable, suitable for food, beverage, cosmetics, medicine and other industries production line.

Description

Application

Single-head automatic filling machine usually has the characteristics of flexible filling parameter adjustment, easy to clean and maintain, safe and reliable, suitable for food, beverage, cosmetics, medicine and other industries production line.

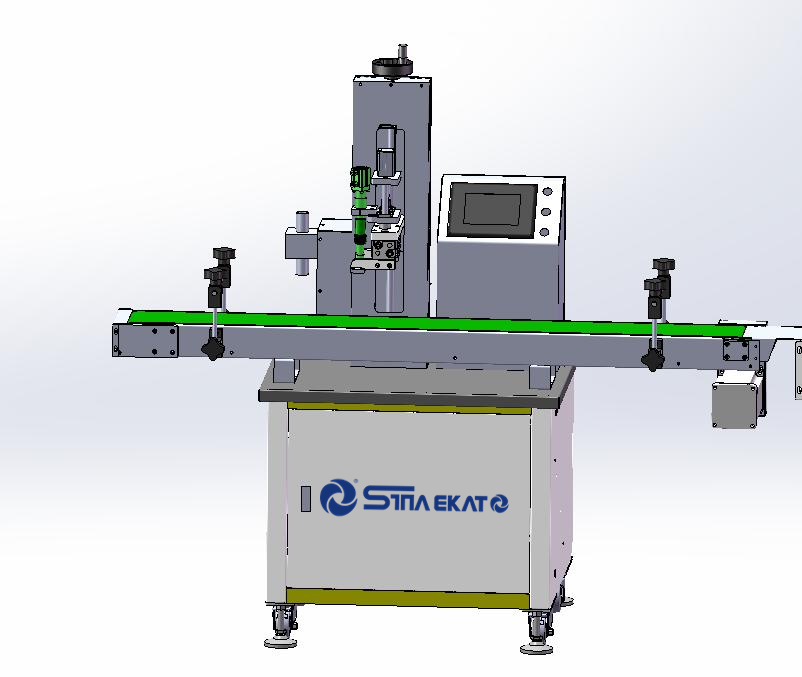

Machine structure drawing

Performances And Features

High precision: The servo drive system can achieve high precision filling operation to ensure that the filling amount of each container is accurate.

Automation: The entire filling process is fully automated, reducing manual intervention and improving production efficiency.

Flexibility: Suitable for containers of different specifications and different shapes, the filling parameters can be changed by simple adjustment.

Reliability: The use of advanced control system and stable structure design to ensure the reliability and stability of the equipment.

Cleanliness: Made of stainless steel, easy to clean and maintain, in line with food, medicine and other industry hygiene standards.

High efficiency: Fast filling speed and accurate control system improve production efficiency and reduce production costs.

Security: The equipment has multiple security protection measures to ensure the safety of operators and equipment.

Technical parameter

Description	Parameter
Filling range	5ml-2000ml
Number of filling head	single head
Fill accuracy	± 5%
Filling speed	10-45 bottles / minute
Power supply	AC 220V, 50 Hz
Power	1,500 W
Overall dimension ( LWH)	700x 650x1600mm

Configuration table

No	Description	Brand
1	Machine material (SUS 304)
2	PLC	Siemens or Mitsubishi or Huichuan
3	Electrical control components	Schneider or Delisi
4	Gas control components	stars or Yadker
5	Touch screen	Siemens or Weilong or Huichuan
6	Bearing used for moving parts
7	Servo motor	Taiwan Dongyuan or Huichuan
8	Low-voltage device	Delixi
Electrical appliances can be customized with
