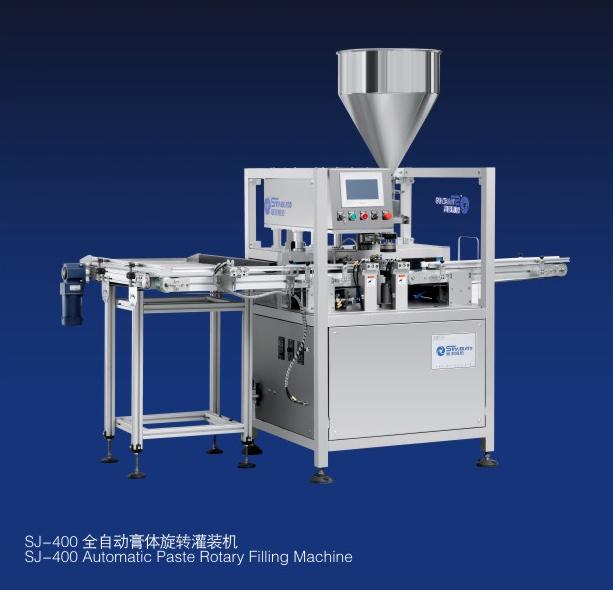

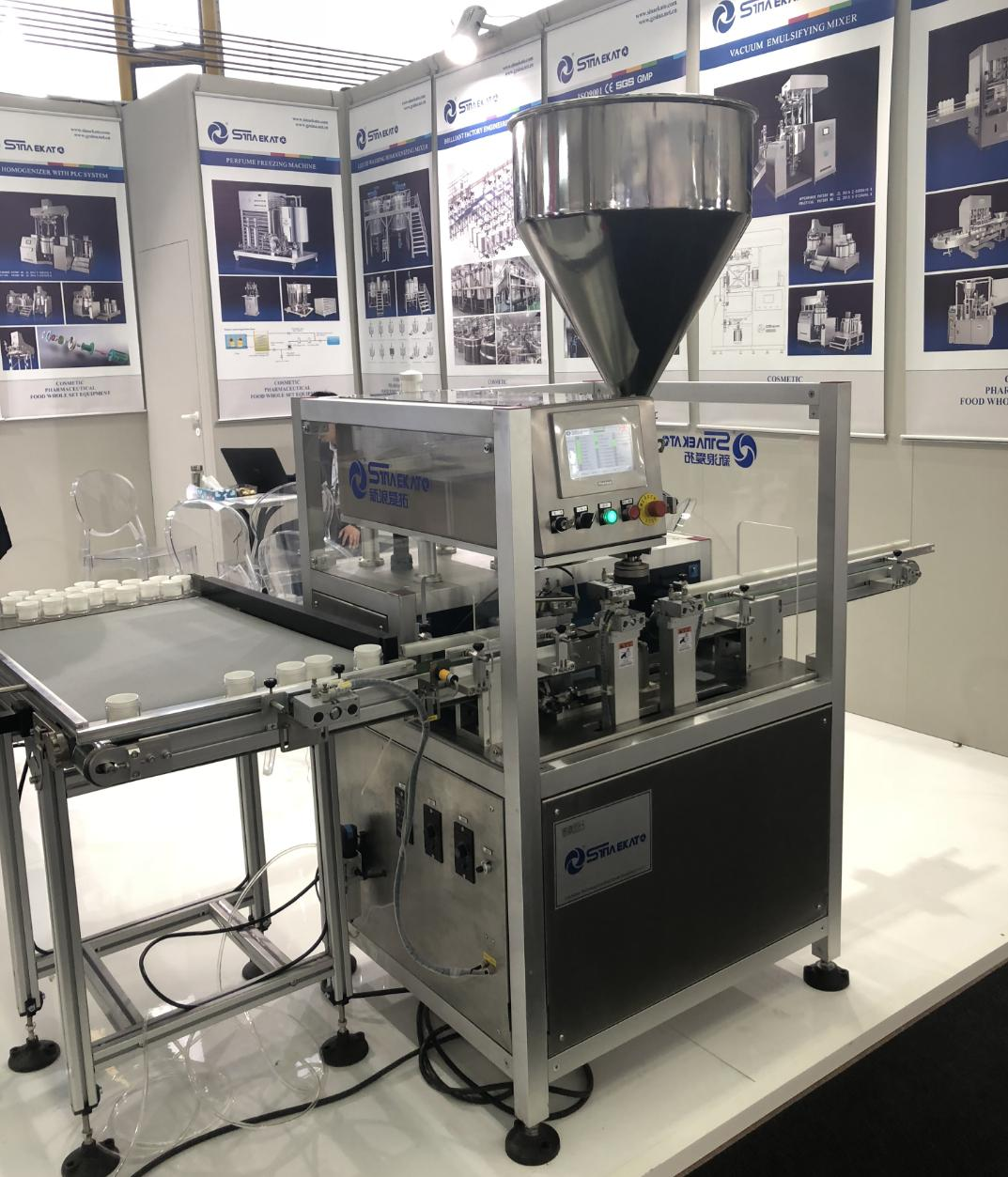

Sj-400 Automatic linear paste filling and capping machine

Description

Mechanical video

Application

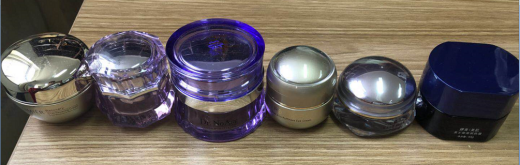

Automatic linear paste filling and capping machine is suitable for filling and capping cream products such as face cream and hand cream in cosmetics industry

Operation

Empty bottle from bottle feeder front side to converyer belt, one or two operators for control the
machine. This equipment will automatic take the empty bottle to filling position, automatic rising for
filling and rotating filling, and then well finished filling product is done. Bottle in place detection:
Rotary lifting filling (move the bubble at the same time)
Well finished product took out

Performances And Features

1. Filling nozzle: 1 pc. 2. Filling volume: 10-50ml
( can be customized )
3. Filling speed: 0-30bots/min
4. Control way: Japan
Mitsubishi PLC touch control
system
5. Imported Danfoss inverter
6. Pneumatic part : FESTO or SMC
7. Motor : ACW, power: 400w
8. With liquid level sensor and feeding pump for

automatically adding material
to hopper. Note: -Contact material : SUS316L
– Other material : SUS304. – GMP standard. Filling speed: – Max filling speed: 30bots/ mins
-Filling speed is depends on the filling product , its features and container size. -The actual filling speed will be provided after testing. Hopper: -Capacity: 45L
– Contact material: SUS316L
-Other material : SUS304. Filling volume: – 10-50ml ( filling volume can be customized)
Filling precision: -±5‰～10‰
Equipment motor: – standard is for 220V/50Hz， single phase/ the control part is for 24V. -other power can be customized , and need to inform us first. Liquid level sensor and feeding pump: – Liquid level sensor in the hopper. – A whole set feeding pump. – For automatically adding the material to hopper, so no need manual adding material. The equipment outer cover is made by Stainless steel and PVC: – The frame is made by stainless steel 304
– Organic glass door construction
Control system
– Mitsubishi PLC touch control panel, color man-machine interface
– Danfoss inverter
– Other electrical part is for Mitsubishi or same quality brand. – Pneumatic part is FESTO or SMC.

Conveyor belt device: – manually put the container into the bottle feeder. – the filling bottle will be reached filling position by piston activity. Volumetric quantitative filling: – 1 pc filling pump
– 1 pc filling hopper
– 1 pc cutting type filling head
– material : SUS316L
Filling position activity is controlled by piston
– the rotating activity will be processed for filling at the same time according to the filling position rising. ( And move the bubble) – filling position up and down activity is control by piston. – the rotating activity is controlled by Servo motor. – well finished product took out
– take out the well finished product from the filling machine to conveyor belt. Suitable bottle size:
diameter：from 35mm to 60mm
height：from 40mm to70mm (other size can be customized)

Safety device：no bottle =no filling
Power: 400W
Filling speed: 900-1800per hour adjustable)
power supply: single phase 220V + 50 Hz
A whole unit is for stainless steel.

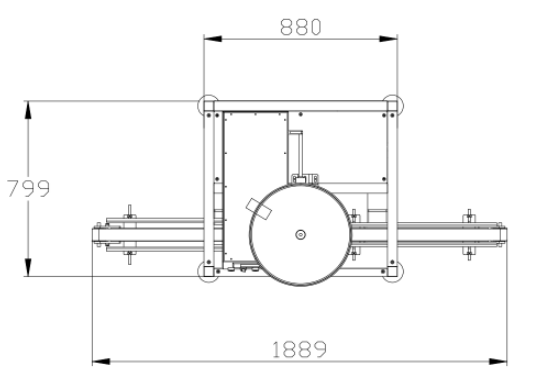

Technical Parameter

Model	SJ-400
Hopper Capacity Capacity	45L
Filling precision	±5‰～10‰
Filling volume	10-50ml (filling volume can be customized)
Filling speed	30bots/min
Power	220V Single-phase 50HZ other power can be customized

Product Details

: PLC Control

Main configuration List:

No	Name	Original
1	PLC	SIEMENS
2	Touch screen	SIEMENS
3	Servo motor（Filling）	MITSUBISHI
4	Conveyor belt motor	JSCC
5	Alternating current contractor	Schneider
6	Emergency stop	Schneider
7	Power Switch	Schneider
8	Buzzer	Schneider
9	Converter	MITSUBISHI
10	Filling nozzle cylinder	AirTAC
11	Rotary valve cylinder	AirTAC
12	Blocking bottle cylinder	AirTAC
13	Clamping bottle cylinder	AirTAC
14	Detection of photoelectric	OMEON
15	proximity switch	OMEON
16	Solenoid valve	AirTAC
17	Filter	AirTAC
