Description
Application

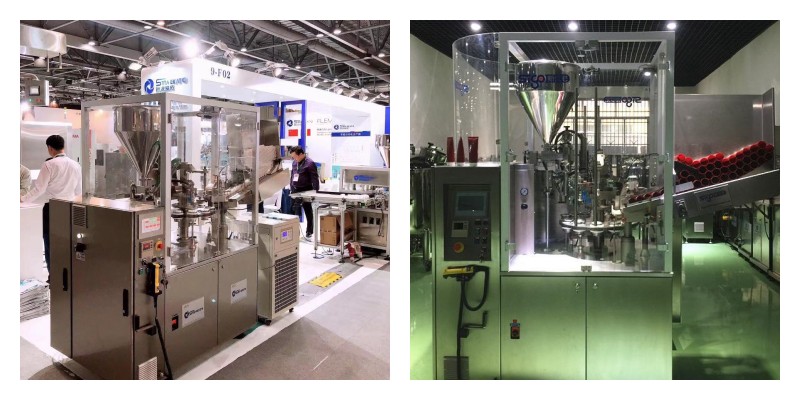

Features

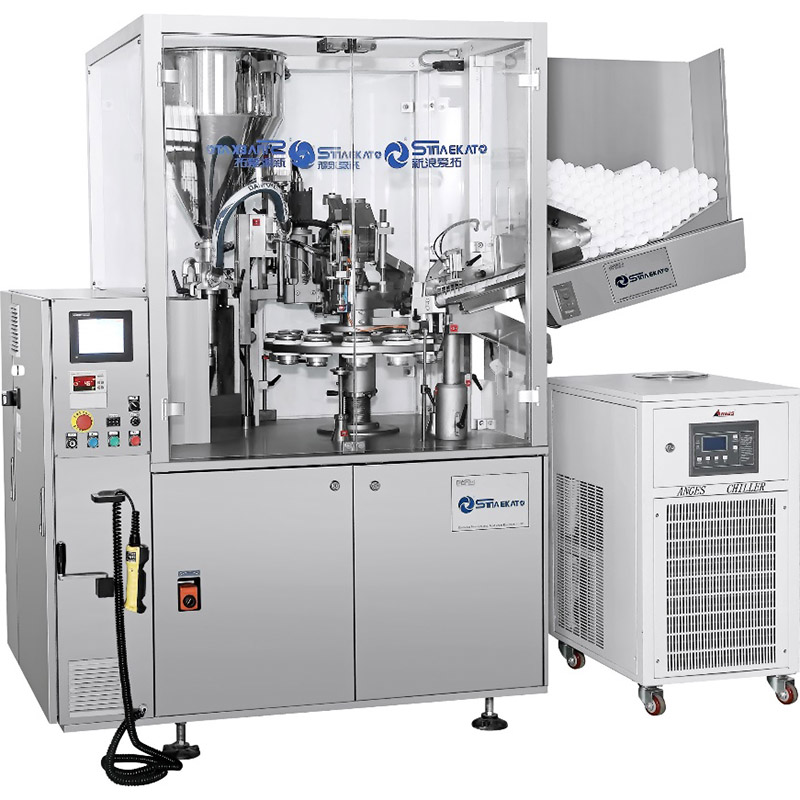

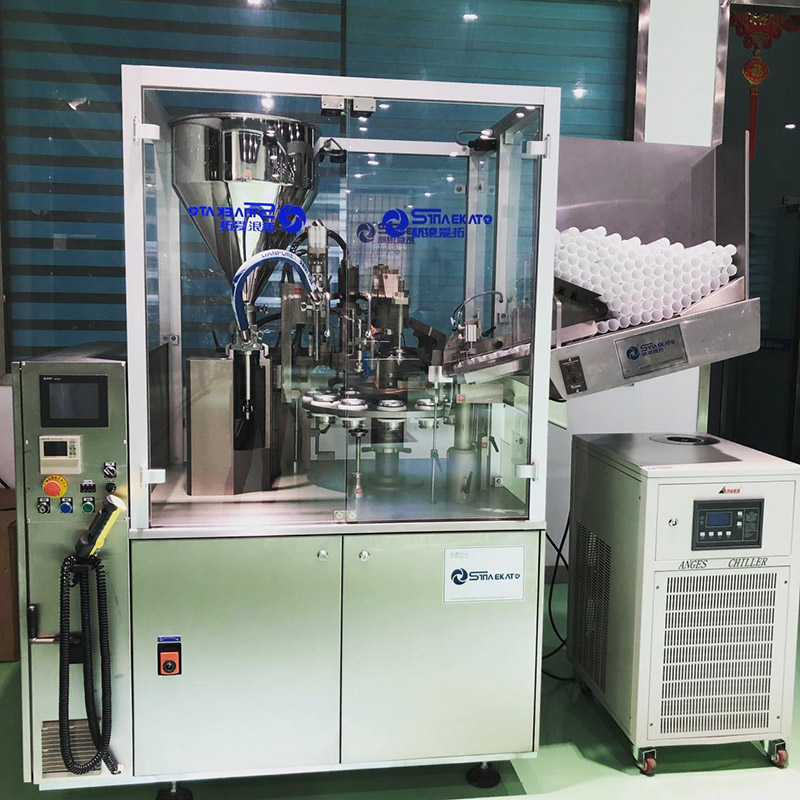

Advantage on ST-60 Tube Filling Machine:
Follow EU standard and “CE” support.
First of all, Europe machine put the user-friendly and safety to worker on the priority, we follow same.
Therefore, the device of motor is equipped with a torque clutch from Italy, effectively protect the machine crash and any abonormal operation which perhaps caused hurt to workers. The Itlay torque once feel worker’s hand abnormal inside the machine, it can feel and control the system.
besides, Japan safety operation handle instead of a simple button effectively protect personnel operating risk.
We use the pure mechanical design is easy to maintenance and repair, equipment with omni-directional security door for safety.
Secondly, GMP and no pollution to the product.
Filling nozzles are made of French materials, and the unique cutting design ensures no leaking, no pollution.
Thridly, High effective, less precision, stable!
Color calibration, we use perfect combination of Italian driver and Japanese sanyo step to ensure the accuracy of color calibration.
60 pcs.min can assure.
above 99% effectively for qualified sealing rate.
The last,
The mechnical parts list from my offer, even the pnemuatic part, we use Feston, but others use domestic Airtac brand…. all parts we use good one. (1:1 to follow the Europe machine)

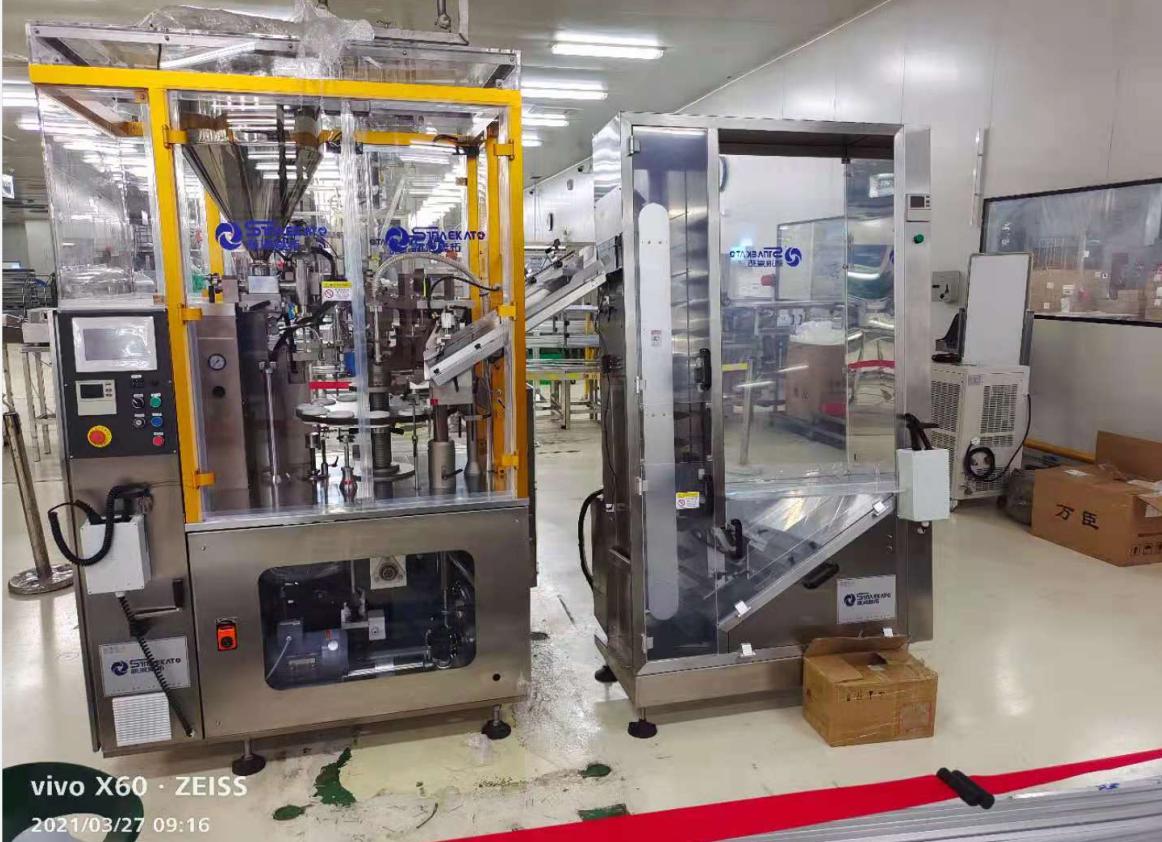

Japan Factory Using Situation

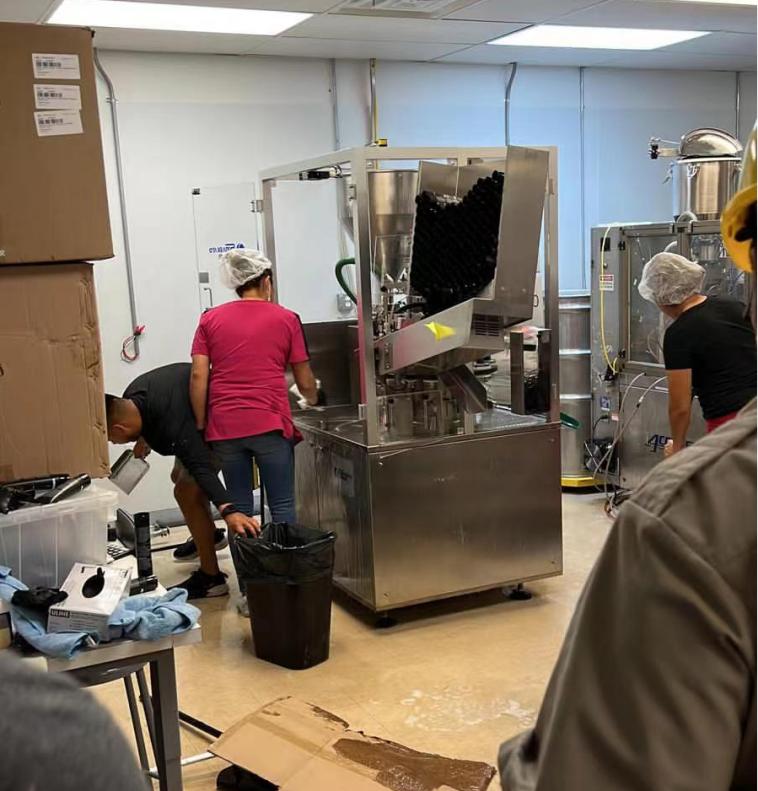

USA Customer Using Situation
We sold to USA, JAPAN, DUBAI, PAKISTAN…countries.
Technical Parameter
The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. lt is widely applied in daily chemical industry, medicine, food, etc.
– Filling volume: 1-400ml
– Filling speed: Around 60pcs/min
(Depend on tube size and viscidity
of filling product)
– Precision: ≤±1%
– Tube diameter: ф16-50mm
(By changing different molds or cylinder for holding tubes ;
Tube diameter: Max 55mm;
– Tube length:
Max 200mm-210mm
– Hopper capacity: 45L
– Air pressure: 0.5-0.7 MPa
– Voltage: 380V /50Hz 3Phase
– Main Power Consumption: 5.5 KW

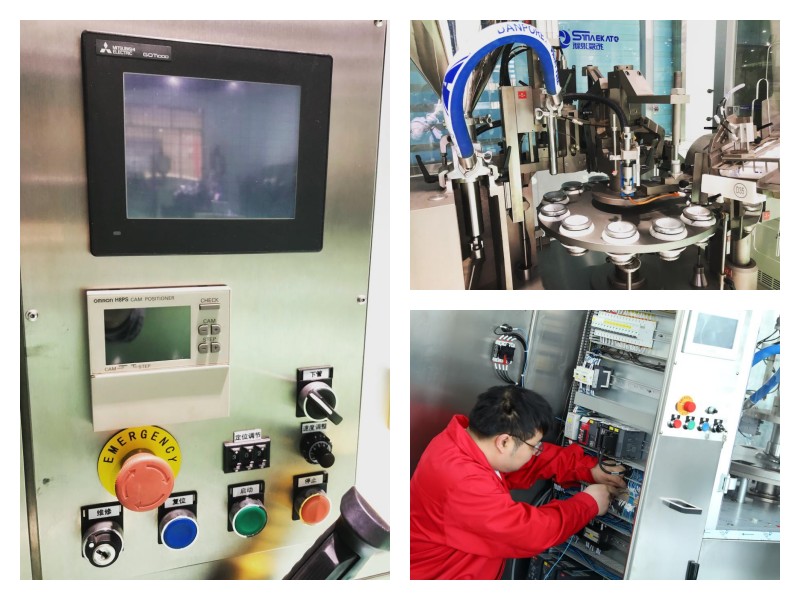

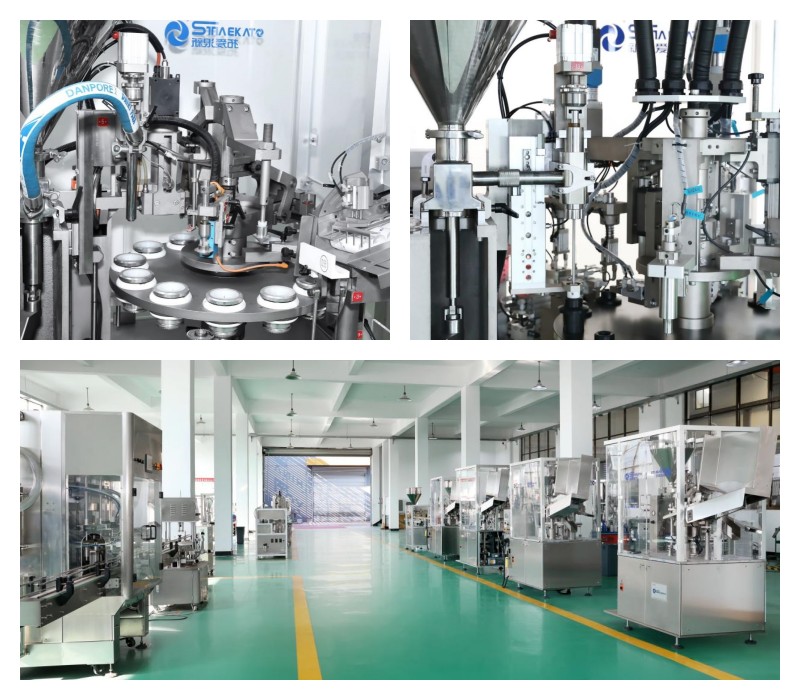

Details
OUTPUT
3600 tubes/hour.
Depending on the viscosity of product, the diameter, the length of the tubes, and the additional equipment chosen.
MACHINE SERVICE
The ST60 is operated by only one person who has to place the empty tubes into the tube store feeder, standard store feeder included in the machine.
THE MACHINE AUTOMATICALLY CARRIES OUT THE FOLLOWING OPERATION:
-Tube transfer into the tube-holder,
-Automatic orientation according to the spot,
-Tube filling,
-Counting of filled tubes,
-Tube sealing,
-Marking of a code on the sealing,
-Ejection of the filled and sealed tubes.
Name | Original | Manufacture | Feature |
Motor Reductor | Germany | Transmission | |
Cam indexers | Japan | Transmission | |
Torsion Limiter | Italy | Transmission | |
Adjust-speed motor | Japan | Discharge tube | |
Linear Slide Rail | Japan | Multifunctional pieces | |
Knuckle Bearing | Sweden | Multifunctional pieces | |
Copper Bush | France | Multifunctional pieces | |
Cursor Locator | Germany | Rotational Position | |
Proximity Switch | Germany | Rotational Position | |
Step Electronics | Japan | Rotational Position | |
Step Drive | Italy | Rotational Position | |
Needle Tube | Material from Germany | Self-made | Filling |
Pneumatic parts | Germany | Multifunctional pieces | |
Adjustable Wrench | Italy | Multifunctional pieces | |
Curve of the bearing | Sweden | Multifunctional pieces | |
Electric Parts | France | Multifunctional pieces |
Relevant Machines

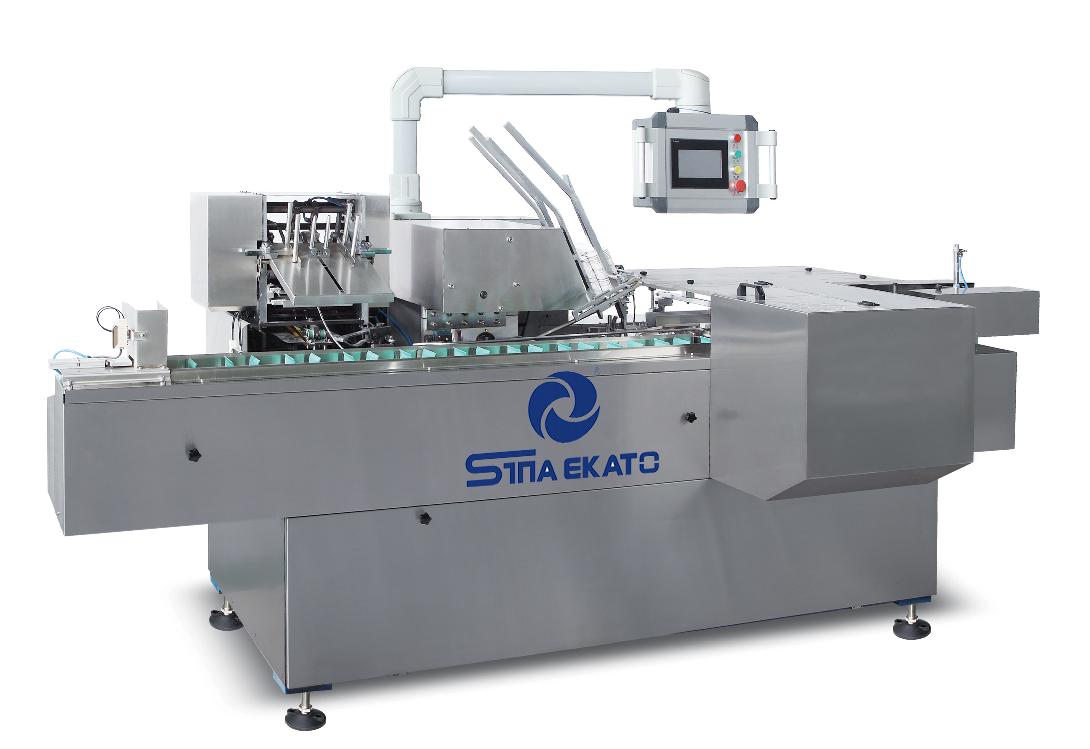

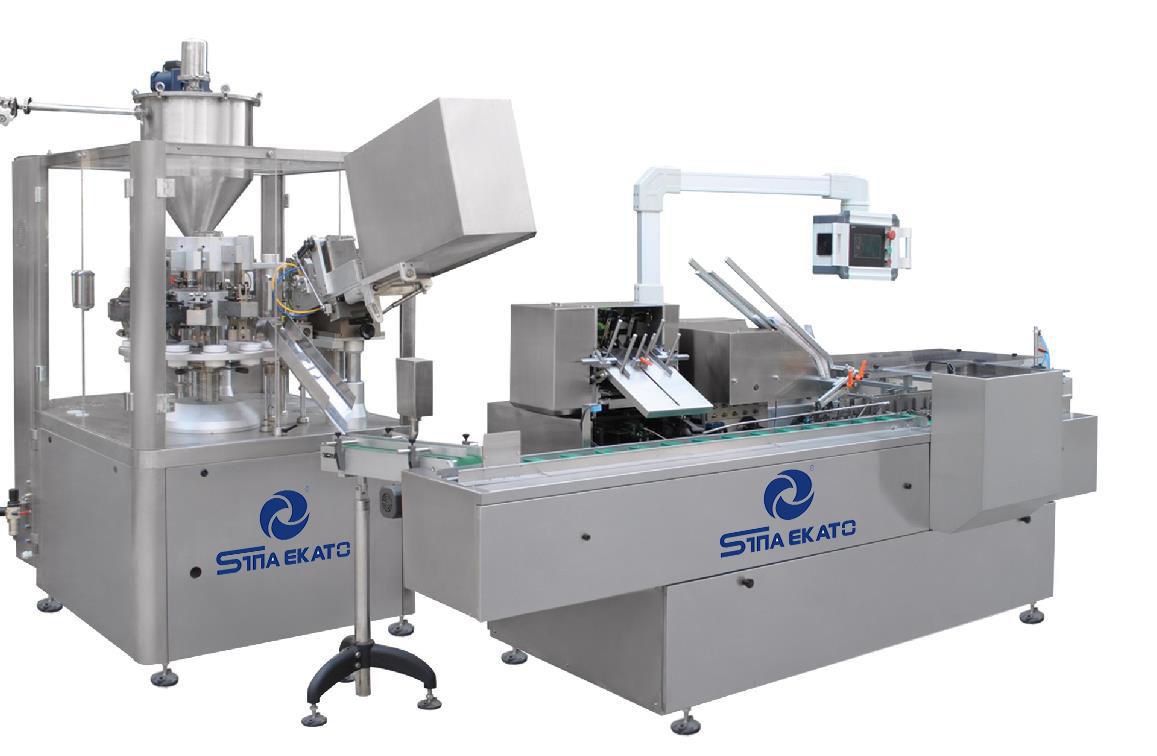

Cartoning Machine

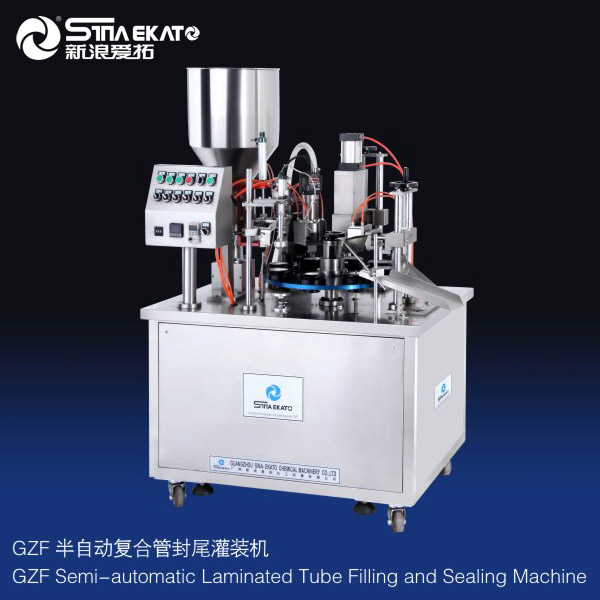

GZF-S Semi-auto Cream Lotion Toothpaste Hair-dye Gel Tube Filling and Sealing Machine (Works for Plastic & Laminated & Aluminum Tube)
